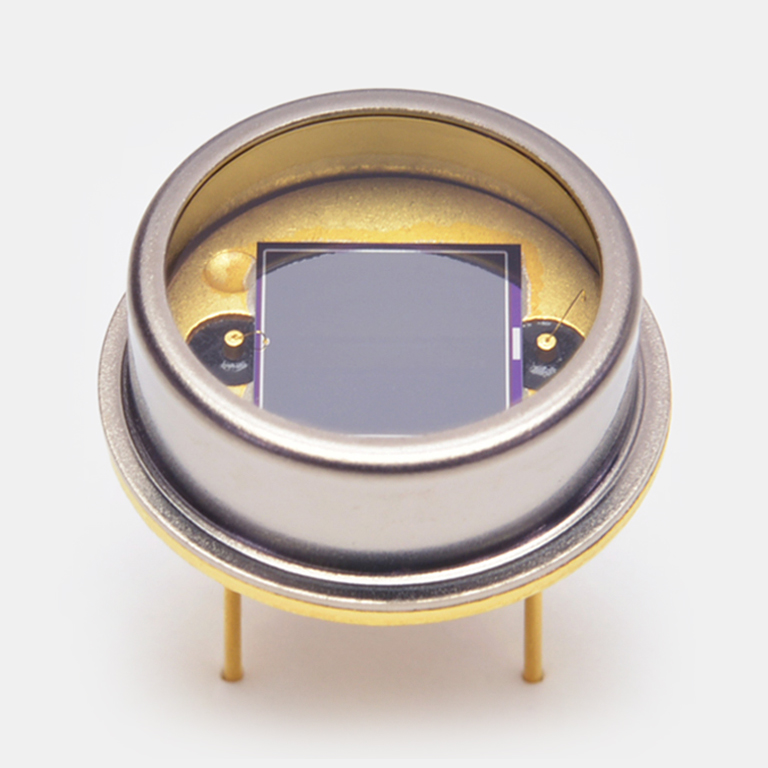

The S1336-8BK is a high-sensitivity silicon photodiode designed for precision light detection in the visible to near-infrared spectrum. Featuring a large active area and excellent linearity, it is widely used in analytical instruments, medical devices, and industrial sensors.
| Parameter | Specification | Unit |
|---|---|---|
| Model Number | S1336-8BK | – |
| Type | Silicon PIN Photodiode | – |
| Spectral Range | 320–1100 | nm |
| Active Area | 1.13 × 1.13 (1.28 mm²) | mm² |
| Peak Sensitivity | 960 | nm |
| Responsivity | 0.62 @ 960nm | A/W |
| Dark Current | ≤ 0.5 (typ. @ 5V bias) | nA |
| Rise Time | 0.5 | μs |
| Capacitance | 4 | pF |
| Breakdown Voltage | 30 | V |
| Operating Voltage | 0–25 | V |
| Output Type | Analog current | – |
| Package | Resin mold, lead type | – |
| Dimensions | 4.5 × 4.5 × 2.1 | mm |
| Weight | ~0.5 | g |
