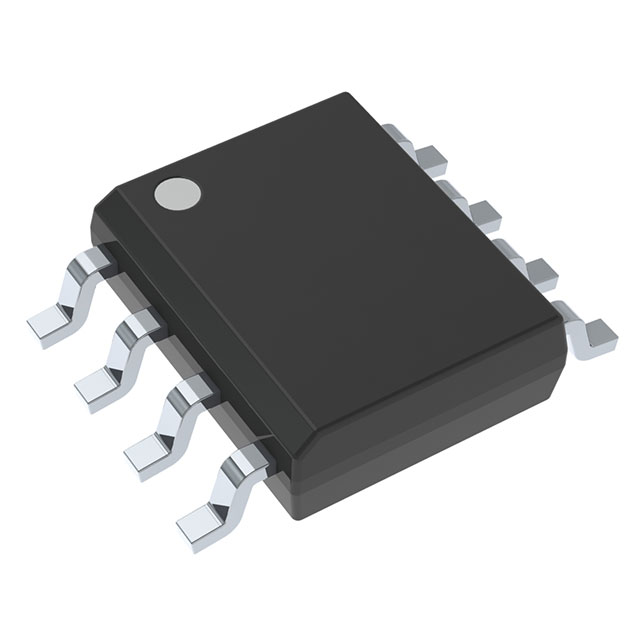

The LMP8601MAX/NOPB from Texas Instruments is a high-precision, high-bandwidth current sense amplifier in a SOIC-8 package. Designed for bidirectional current measurement, this device offers low offset, high common-mode rejection, and wide input range, making it ideal for motor control, power management, and battery monitoring applications.
| Parameter | Value | Unit |
|---|---|---|
| Supply Voltage Range | 2.7V to 5.5V | V |
| Input Common-Mode Range | -16V to +80V | V |
| Gain Options | 20, 50, 100 | V/V |
| Gain Error (max) | ±0.5% | – |
| Offset Voltage (max) | ±150 | μV |
| Bandwidth | 500 (typ) | kHz |
| Quiescent Current | 0.9 (typ) | mA |
| Operating Temperature | -40°C to +125°C | °C |
| Package | SOIC-8 | – |
