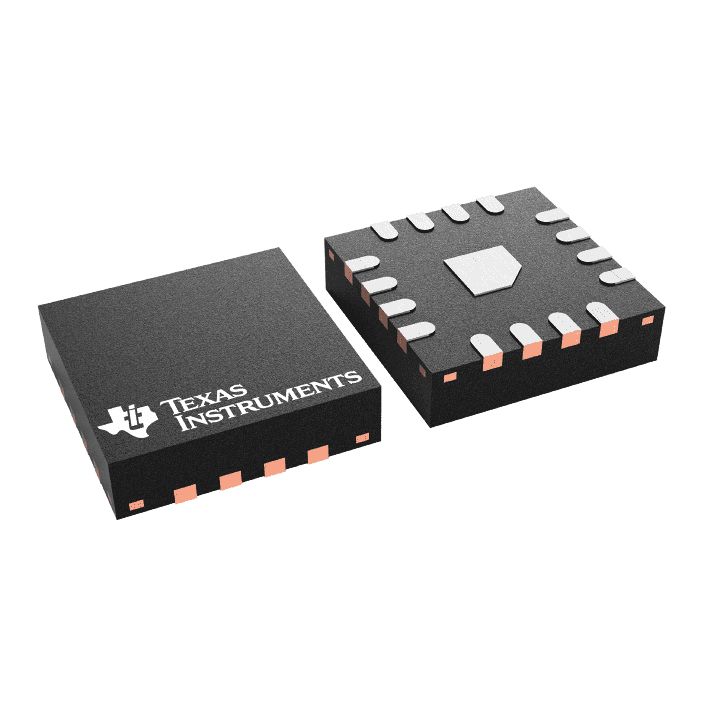

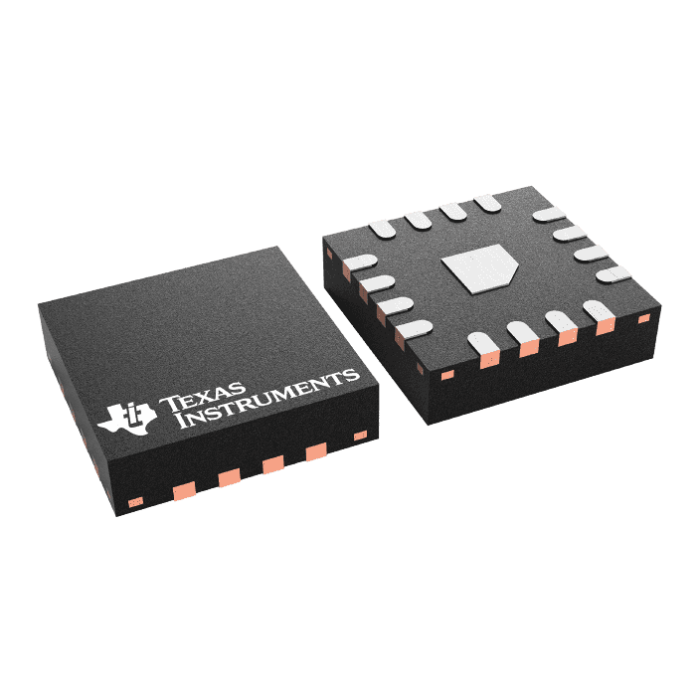

DAC70508MRTER
Request Quote
Parameter
Specification
Manufacturer
Texas Instruments (TI)
Resolution
16-bit (True 16-bit performance)
Channels
8 (Octal)
Output Type
Voltage (Buffered)
Output Range
0V to Vref (5V max)
Interface
SPI (50MHz max)
INL/DNL
±1 LSB (max)
Settling Time
10µs (typ)
Power Supply
2.7V to 5.5V
Current Consumption
1mA/channel (typ)
Package
16-pin WQFN (3mm × 3mm)
Operating Temp
-40°C to +125°C
Related products
TPD7S019-15DBOR
Read more

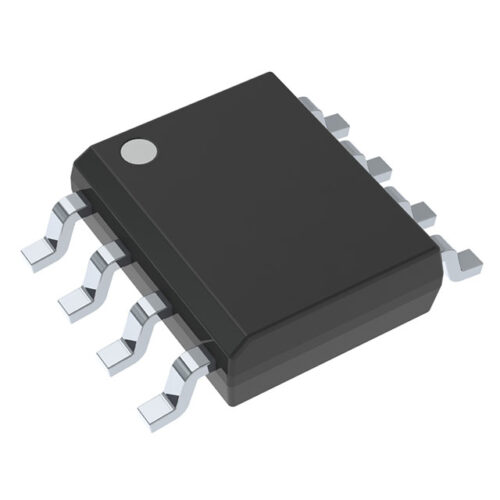

LMP8601MAX/NOPB
