In simple terms, BGA (Ball Grid Array) packages themselves cannot be directly made into hot-swappable designs, but similar functionality can be achieved through alternative methods.

Why Can’t BGA Be Made Hot-Swappable?

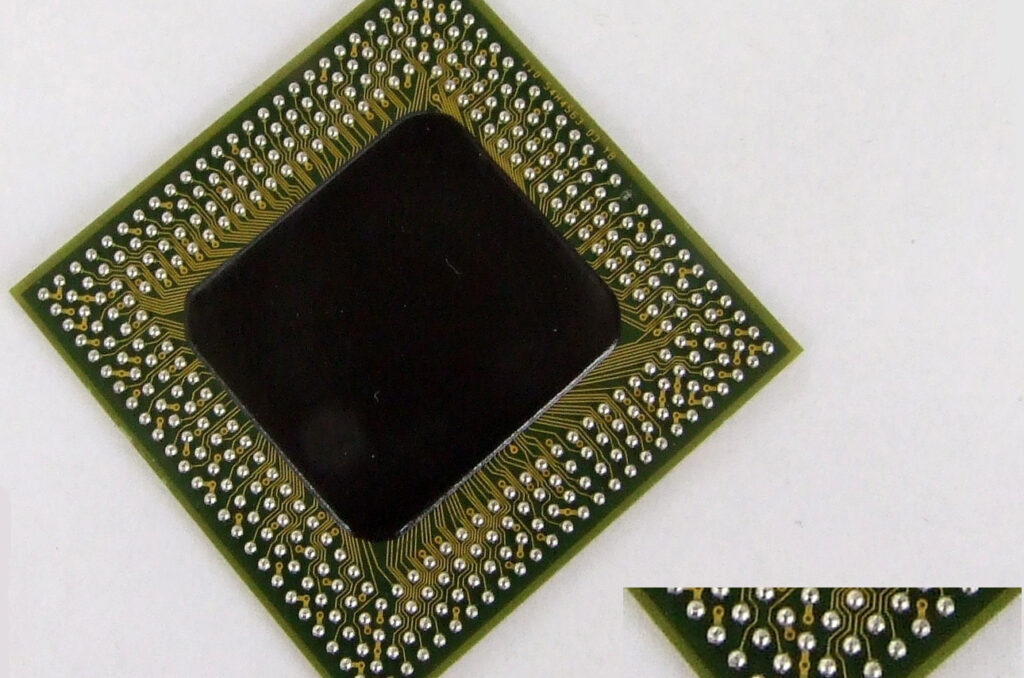

BGA packages rely on tiny solder balls at the bottom that are permanently fused to the circuit board through reflow soldering. This creates a strong, reliable connection, making it ideal for high-performance chips. However, once soldered, the chip cannot be easily removed or replaced—unlike traditional socketed components.

Alternative Solutions for Hot-Swappable Needs

If removable functionality is required, there are a few possible approaches:

One common alternative is LGA (Land Grid Array), which is used in modern desktop CPUs like Intel’s processors. Instead of solder balls, LGA packages have flat metal contacts that connect to spring-loaded pins in a socket. This allows the CPU to be installed and removed easily while still supporting high pin counts (some modern sockets have over 1,700 contacts). The downside is that repeated insertions can wear out the socket over time.

Another option is using BGA-to-socket adapters, though these are rare and generally unreliable for long-term use. They are mostly seen in development and testing environments where engineers need to prototype without permanently soldering chips.

For modular designs, high-density board-to-board connectors can be used, but they take up more space and may not match the electrical performance of a direct BGA connection.

Key Trade-offs to Consider

Hot-swappable solutions introduce some compromises:

• Mechanical wear: Repeated insertions can degrade socket contacts.
• Signal integrity: Extra connectors can affect high-speed signals.
• Thermal performance: Sockets add thermal resistance, potentially limiting cooling efficiency.

Practical Recommendations

• For permanent installations: Standard BGA soldering remains the most reliable choice.
• For removable needs: LGA sockets (like those in PCs) are the most proven solution.
• For prototyping: Temporary adapters or development boards can be used, but they are not ideal for final products.

Maintenance and Repair

• BGA chips require professional rework stations for replacement.
• LGA sockets need periodic cleaning to prevent oxidation and poor contact.

Final Thoughts

While BGA itself is not designed for hot-swapping, alternative packaging like LGA or specialized connectors can provide removable functionality—just with some trade-offs in reliability, performance, and cost. The best choice depends on whether easy replacement is more important than maximum stability and performance.
